Classical denyo style 25kva diesel generator price

Product Description

Detailed description Output:5KVA-2500KVA Reliability quality and performance Famous Diesel Engine Warranty on global
Model  400V / 50Hz / 1500RPM Ricardo and Shanghai Diesel Engine 1500rpm Alternator
Standby output Prime Output Model / Output Engine type Displacement Bore×Stroke Brushless Alternator
KVA KW KVA KW No. of Cylinder Governor (L) (MM)
CHINESE RICARDO ENGINE
GF-11 11  8.8 10 8 K2105D L2 Mechanical 1.63 105×115 WP164B
GF-15 14  11 13 10 K2105D L2 Mechanical 1.63 105×115 WP164C
GF-17 17  13.2 15 12 K4100D L4 Mechanical 3.61 100×115 WP164D
GF-21 21  16.5 19  15 K4100D L4 Mechanical 3.61 100×115 WP184E
GF-30 28  22 25 20 K4100D L4 Mechanical 3.61 100×115 WP184F
GF-33 33  26 30 24 K4100D L4 Mechanical 3.61 100×115 WP184G
GF-41 41  33 38 30 K4100ZD L4 Mechanical 3.61 100×115 WP184H
GF-55 55  44 50 40 R4105ZD L4 Mechanical 4.33 105×125 WP224D
GF-70 69  55 63 50 R4105AZD L4 Mechanical 4.5 105×125 WP224E
GF-100 96  77 88 70 R6105ZD L6 Mechanical 6.49 105×125 WP224G
GF-110 110  88  100  80  R6105ALD L6 Mechanical 6.75 105×130 WP274C
GF-125 125  100 113 90 R6105ALD L6 Mechanical 6.75 105×130 WP274D
GF-140 138  110 125 100 R6105IZLD L6 Mechanical 7.1 105×135 WP274ES
GF-165 165  132 150 120 R6110ZLD L6 Mechanical 7.52 110×135 WP274F
GF-206 206  165 188 150 R6113AZLD L6 Mechanical 7.82 113×135 WP274G
GF-250 248  198 225 180 R6126ZLD L6 Mechanical 9.73 126X130 WP274J
GF-275 275  220 250 200 R6126ZLD-1 L6 Mechanical 9.73 126X130 WP274K
GF-330 330  264 300 240 618ZLD L6 Mechanical 11.6 126X155 WP444D1
GF-350 344  275 313 250 618AZLD L6 Mechanical 11.6 126X155 WP444E
CHINESE SHANGHAI ENGINE
GF-413 413  330 375 300 12V135AZLD /SDV510 12V Electric 25.8 135×155 WP444FS
GF-500 500  400 450 360 12V135BZLD /SDV610 12V Electric 26.6 135×155 WP544C
GF-550 550  440 500 400 12V135BZLD-1 /SDV660 12V Electric 26.6 135×155 WP544D
GF-700 700  560 625 500 SY630 /SDV820 12V Electric 27.14 135×158 WP544FS
GF-825 825  660 750 600 SY720 /SDV880 12V Electric 29.61 138×165 WP634B

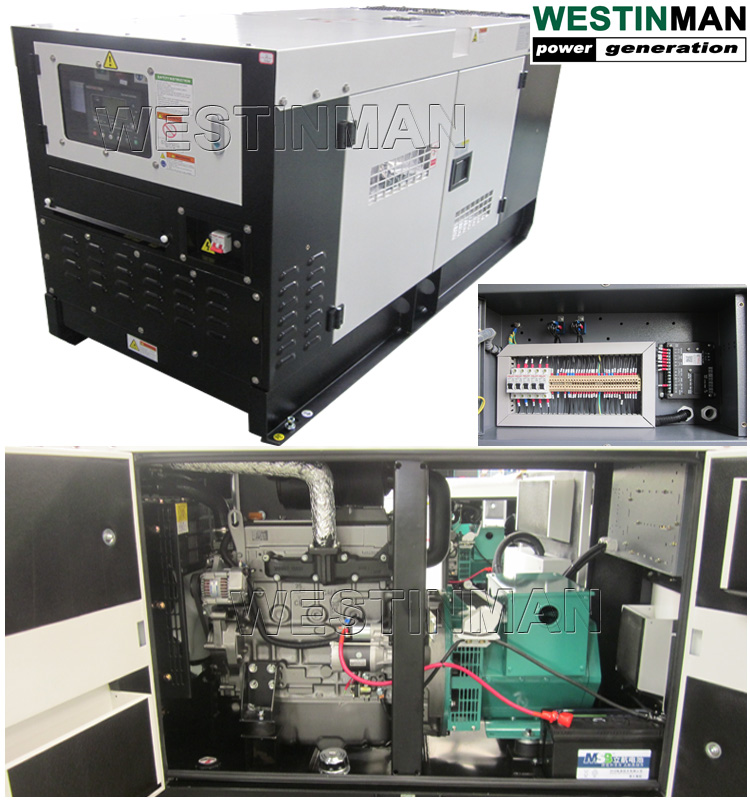

Diesel Generator Set   Silent / Soundproof type / Open type / Trailer type Safety – Stability – Economy - Sufficient power 1. Our cooperate with famous diesel engine –Powered by USA, UK Brand Diesel engine  Deutz , LovoL , Lister Petter, Doosan, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.   2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, JET, Mecc alte. 3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working 4. Equipped with advanced Generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , 5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM 6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing 7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire. 8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working. 9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker 10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency. 11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance 12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator. 13. all new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type. Diesel Generator set   Silent / Soundproof type / Open type / Trailer type Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard Prime output power: 5KVA - 2000 KVA Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. Phase/connecting: 3 phase, 4wire. Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm Alternator excited type: Brushless, self excited or PMG Insulation: Class H Protection: IP21~IP23 Voltage regulation: AVR automatic control 1% Altitude above sea level:  ≤1000 meters Ambient air temperature:  ≤40°C Relative air humidity:  ≤ 90% Warranty policy   Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable Spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.

Contact us if you need more details on denyo generator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about diesel generator、25 kva diesel generator. If these products fail to match your need, please contact us and we would like to provide relevant information.
