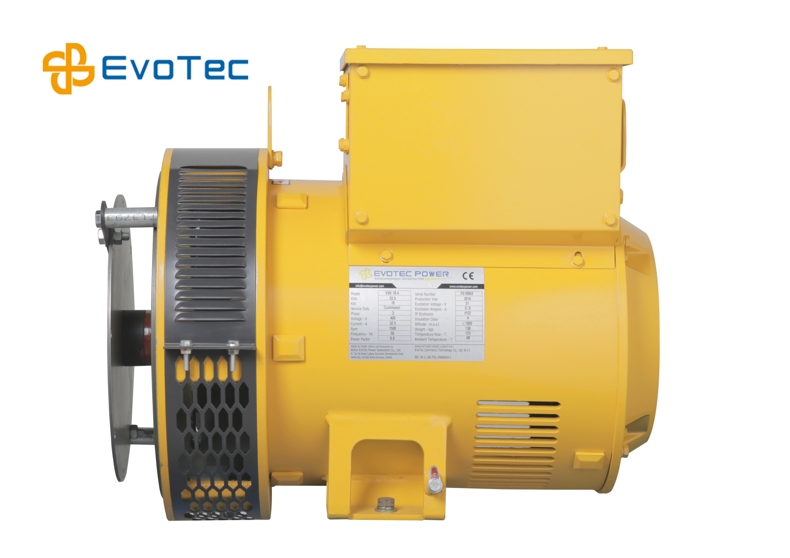

6.8KW-2800KW Three Phase Synchronous IP22 Generator

Basic Info

Model No.: TCU188C

Product Description

EvoTec brushless three phase synchronous Generator including 6.8KW-2800KW Three Phase Synchronous IP22 Generator, Synchronous IP22 Generator,16kw Low Voltage IP22 Generator,Three Phase IP22 Generator etc,they can couple with any famous engine with standard SAE like Cummins,Doosan ,MTU, LOVOL ,we have 30 design technology patents in China.Power rating from 8.5-4000kVA with single or double bearing configuration.

Standard Technical Features

Duty Rating

Continuous S1

Number of poles

4

Wind pitch

2/3

Frames

168 to 568

Phase sequence

UVW

Powers

up to 4000 KVA

Terminal

6 to 12

Frequency

50 HZ to 60HZ

Voltage regulation

±0.5%

Power factor

0.8 lagging

Speed

1500 rpm or 1800 rpm

Low voltage

110v to 690v

Maximum unbalance load

25%

High voltage

3300v to 13800v

Overload

10% for 1 hour in every 12 hours

Direction of rotation

CW from drive end

Over-speed

1.25 times normal speed for 2 minutes

Harmonic distortion factor

<3% for three-phase

Degree of protection

IP22(IP23,IP44,IP55 on request)

Temperature rise class

Standard class H

Sustained short cut circuit

3 times at full load current

Insulation Class

Standard class H



Synchronous IP22 Generator

Synchronous IP22 Generator

16kw Low Voltage IP22 Generator

16kw Low Voltage IP22 Generator
Three Phase IP22 Generator

Three Phase IP22 Generator



Supply ability

Supply Ability: 1500 units per Month EvoTec three phase synchronous generator

Packaging & Delivery

Packaging Details:Wooden case 3 phase industrial generator

Port:Wuhu /Shanghai port

Lead Time:7-30 days after receiving your payment

Company Introduction

EvoTec Power Generation Co., LTD is a professional manufacturer of A.C synchronous generators,high voltage Brushless Alternator, low voltage brushless generator,4 pole three phase generator,land use synchronous Alternator,Diesel Generator integrating researching, designing,producingselling all by ourselves.We produce three-phase brushless self-excited alternators,range from 20kva to 3500kva, 50hz/60hz option, rpm 1500-1800, voltage 110V-13800V, class H, IP23, easily coupled with all brands of Diesel or Gasoline engines and steam or hydraulic turbines, such as world first-class of Cummins, Perkins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar,Kubota, Lister Petter, Doosan, etc.Our alternator are widely used in industry, commercial, realestate, hospital, hotel, railway, telecommunications, data-centers and mining etc.


Certificates

15446835884047


Synchronous Generator Manufacturer Factory Pictures

Alternators WindingVpi Generator

Industrial Alternator Fair Pictures

E3

Package Picture

Industrial Generator Packed With Plywod Case


Contact us if you need more details on Synchronous IP22 Generator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 16kw Low Voltage IP22 Generator、Three Phase IP22 Alternator. If these products fail to match your need, please contact us and we would like to provide relevant information.
