Home > Products > 8kva-20kva Alternator > 10KW 50HZ Single Bearing AC synchronous alternator Brushless Generator

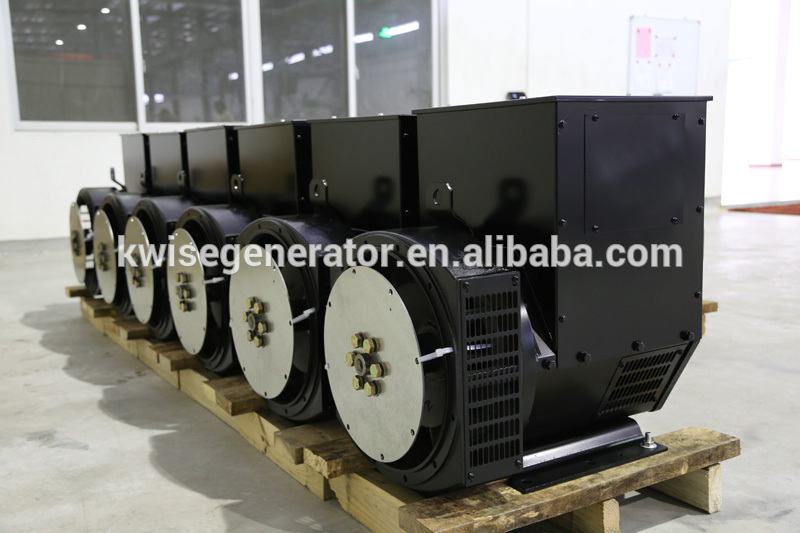

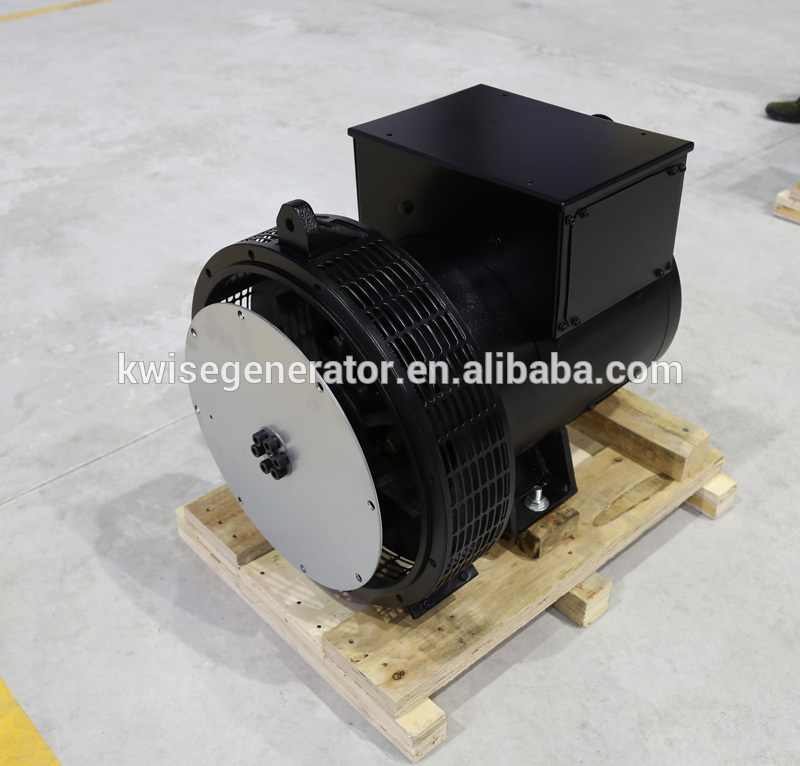

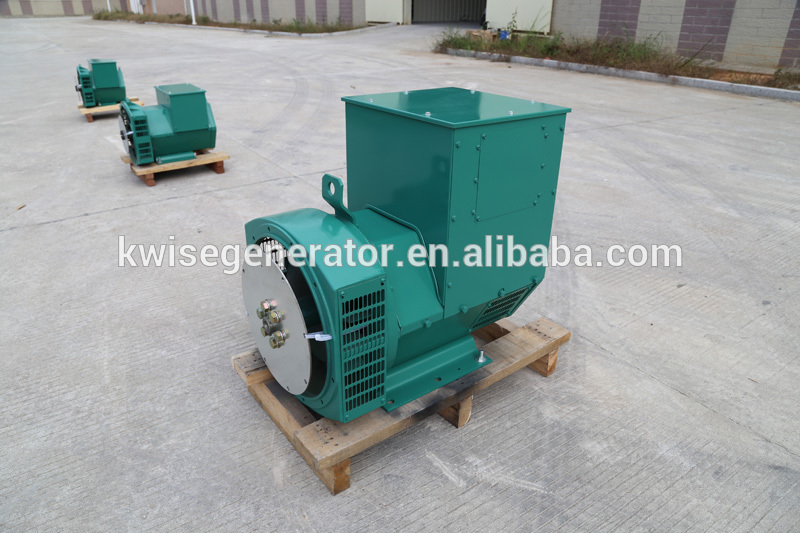

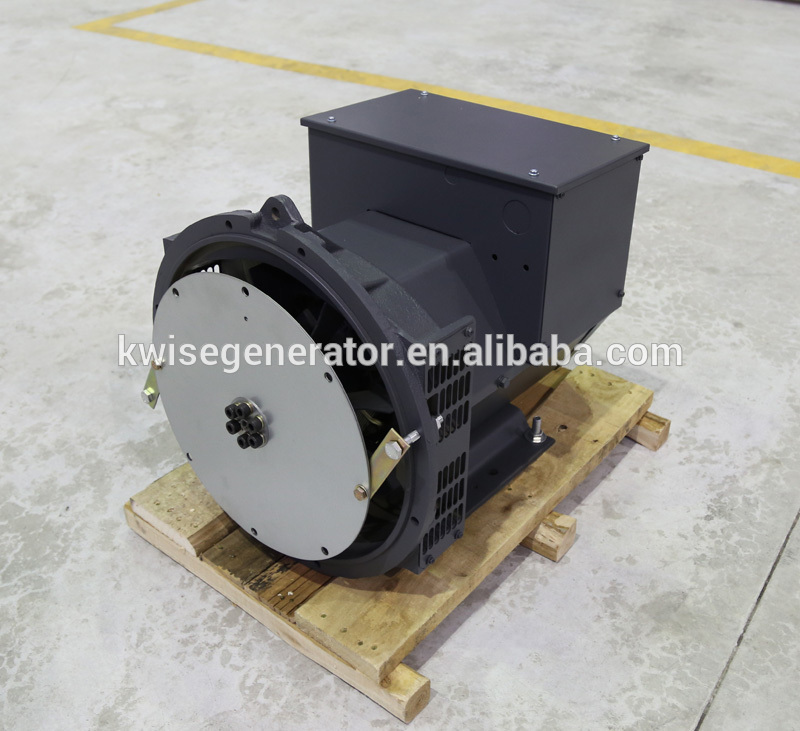

10KW 50HZ Single Bearing AC synchronous alternator Brushless Generator

Product Description

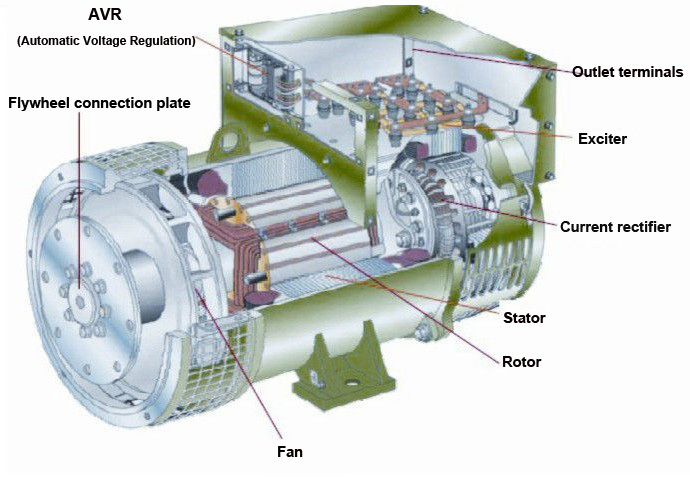

  Product Description   Specification:    Model series: SG164 series Brushless synchronous AC Alternator;   Range of power: From 6.5kw to 14kw, 190-690V;   Frequency: 50Hz 60Hz .   Phase: Single Thase or Three Phase is optional   Certificate: Has passed CE, ISO9001: 2008   Export Markets: Global   Insulation class: H     Raw material:  1. Copper wire has passed UL certified class 200.   2. PMG and VPI are optional.   3. Insulation paper is Tyvek (Dupont paper).   4. Epoxy Resin from ALTANA in Germany.   5. Low iron-loss silicon steel is BS470 from WUHAN IRON AND STEEL GROUP.    Product Description   SG164 series Brushless synchronous AC alternator, the range of power is from 6.5kw to 14 kw,single or three phase, 4 pole, 1500rpm/1800rpm, 190-690V.   Standard Feature of Product:   1: Comply with the most common standard in terms of GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100;   2: Single or double bearings are available, options for  all  kinds of adaptors and disc plates;   3: 12-end reconnectable winding terminals to get different voltages;   4: Standard "H" insulation class;   5: Convenient installation and maintenance for lead-end rotated diodes and adaptor connected bolts;   6: Standard sealed maintenance-free bearings;   7: Standard IP23 protection, optional severe environment protection;   8: Optional auxiliary winding in excitation system;   9: Standard PMG in excitation system.     SG164 Series Overall&Mounting Dimension Singal bearing Double bearing   Note:  *The generators have been designed for use in a maximum ambient temperature of 40degree and Altitude less than 1000m above sea level;   *All generators are 4-pole ones;   *Extended range voltage can be got from single windings or from 12-leads adjusted.   Electric Features: 1. Voltage accuracy is ± 1% in static condition with any power factor, with optional PMG and MX321 AVR, voltage accuracy will be ± 0.5%;   2. 2/3 pitch winding effectively eliminate harmonic waves, best for non-linear load;   3. Faraday alternators can function in parallel among themselves;   4. Radio interference suppression.   Option Features: 1. Interchangeable S.A.E. flanges and S.A.E. drive discs      2. Convenient filters on air inlets and outlet   3. Protection for windings in harsh environments   4. Different AVR type   5. Different windings                                    6. exterior potentiometer                                                     7. Space heaters                            8. stator thermal protection   9. PMG or auxiliary windings   10. Droop current transformers (C.T.)        Production processes:   PRODUCTS SHOWS 1. Round Body Style Brushless Alternator 2. Hexagonal Body Style Brushless Alternator.     Packaging & Shipping Packing details: 1.Covered with plastic film to prevent moisture.

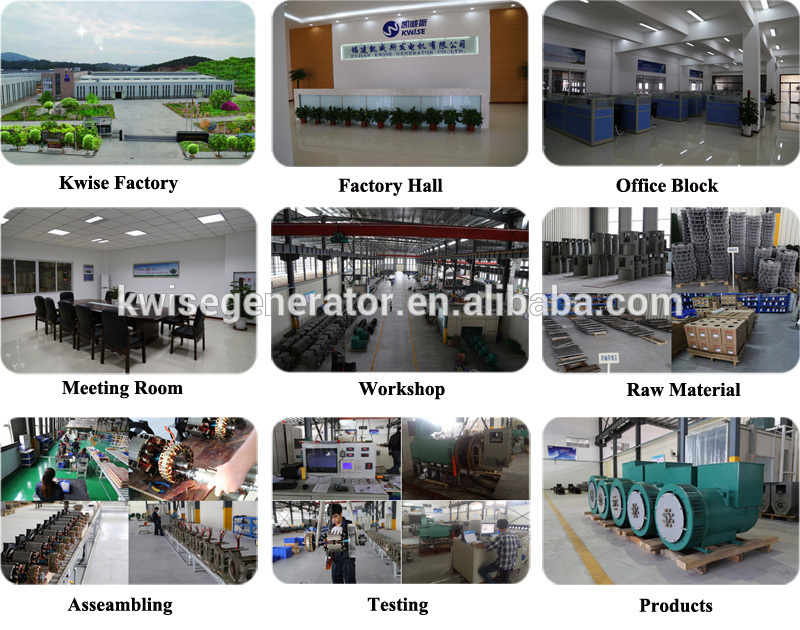

2. Packed in standard export package with wooden cases.       Our Services    Warranty period: Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.   Accordant Standard: GB755 National Standard for Rotating Electrical Machine; IEC60034 (International Electrotechnical Commission); BS5000, VDE0530, CSAC22.2-100 International Standard. Application Area: Kwise alternators fit all different brands of engines, are extensively used as prime or standby power in various applications. Such as General industry, Mining, Military, Oilfield, Construction, Telecommunication, Hospital, Engineering Machinery,Building construction, CHP, Marine and other harsh environment applications etc.   Company Information   Fujian Kwise Generator Co.,Ltd is a professional manufacturer of AC brushless Alternators from 6kw to 2000kw with 10,000 square meter area ,which is wholly owned by CHINA SCHOLARS GROUP. Our products have passed approval of quality management system ISO9001,ISO140001, and we also have achieved the international approval such as UL,CE,CCS, SONCAP.       FAQ 1.Q: Classification of generator: (1)Single phase or three phase is optional.   (2).Single bearing or double bearing is optional.   (3).PMG is optional:  Alternators with PMG,Models: SG224 -SG314,SG354-SG404,LA224-LA314,LA354-LA404   (4).Droop Kit and Anti-condensation heater are optional according to the operation environment.   (5).2 pole/4 pole/6 pole/8 pole alternators are optional.   2.Q:How to choose AVR? SG164,LA164,SG184,LA184,SG224,LA224,SG274,LA274 series     SX460   SG314,LA314                                                                                     SX440   SG354,LA354                                                                                     KR440   3.Q:How to select generator?   (1).Working environment(less than 1000m above sea level & less then 40℃ ambient temperature).   (2).Different country with different rated frequency(50Hz or 60Hz).   (3). For sea side operating environment,anti-condensation heater and droop CT.   (4). Generator insulation class H.(Inccopper wire,rotor,stator,)   (5). Generator stators are wound to 2/3 pitch. The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher winding pitches,when in parallel with the mains.   4.Q:What is your MOQ of this item?    A: Above 1pcs   5.Q: What is the lead time?     A: 15-20 days after receiving your L/C or T/T deposit.   6. Q: Is it all right to make customer's own brand name?      A: We can be your OEM manufacture with your authorization of brand.   7. Q: Where is your Loading Port?     A: Fuzhou Port, China.Which is only 40km far away from our factory location.     8. Q: What are your payment terms?      A: 30% deposit and balance T/T before shipment or L/C at sight.

Contact us if you need more details on brushless generator . We are ready to answer your questions on packaging, logistics, certification or any other aspects about 250w brushless generator、single phase synchronous brushless generator. If these products fail to match your need, please contact us and we would like to provide relevant information.
